Build an AI Voice assistant like Siri (use OpenAI AI Assistant)

Hi! Today, we'll learn how to build an AI Voice assistant like Siri that can understand what we say and speak back to us.

Demo AI Voice assistant

Here's what we're going to build:

This post will focus on implementing it as a web application. Therefore, we will use HTML for the interface and Javascript for the voice features. You might want to adjust this if you build for another platform (mobile, desktop, etc.).

Regardless of the platform, knowing the components of how to build this will help us along the way.

Tutorial to build an AI Voice assistant like Siri illustration

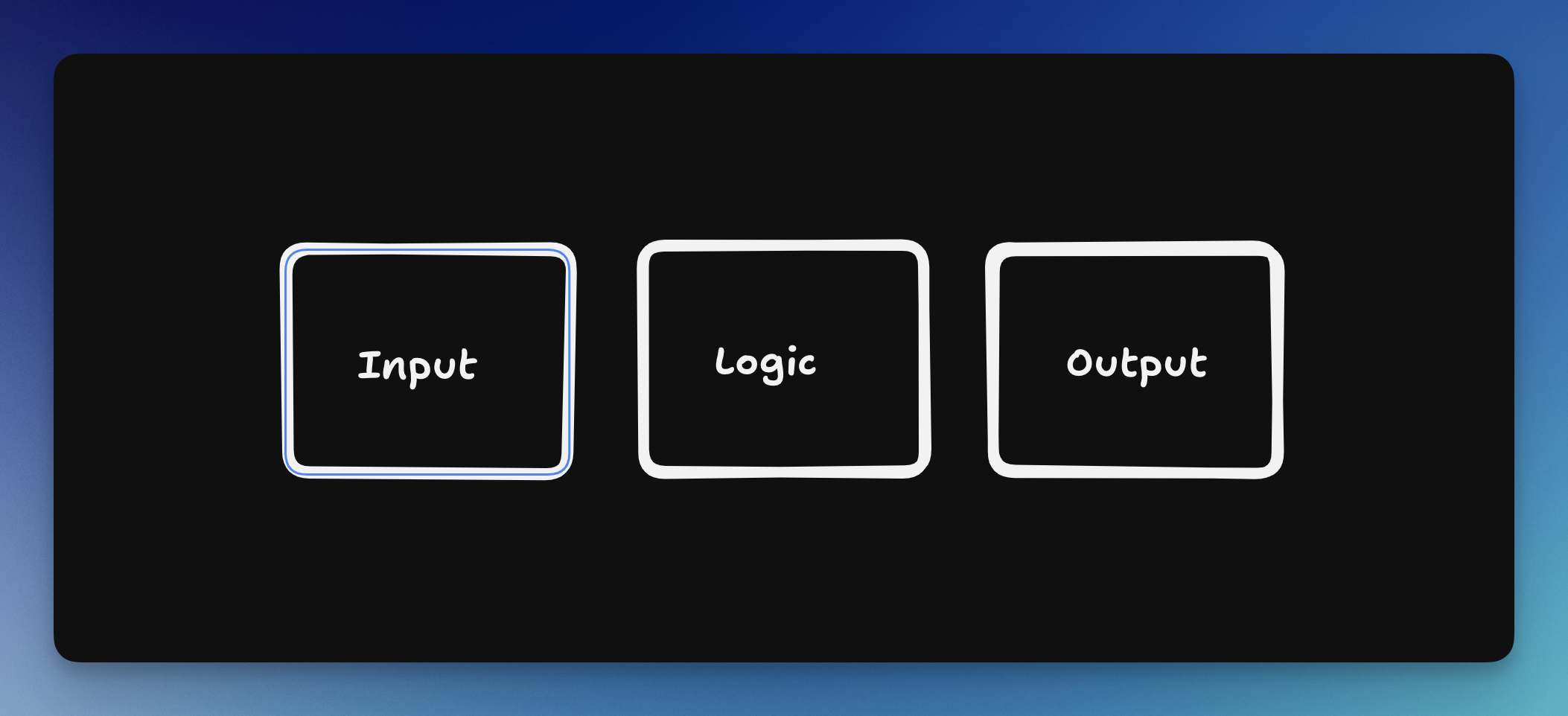

Basic Voice AI assistant Structure

Just like other applications, we will have this basic structure:

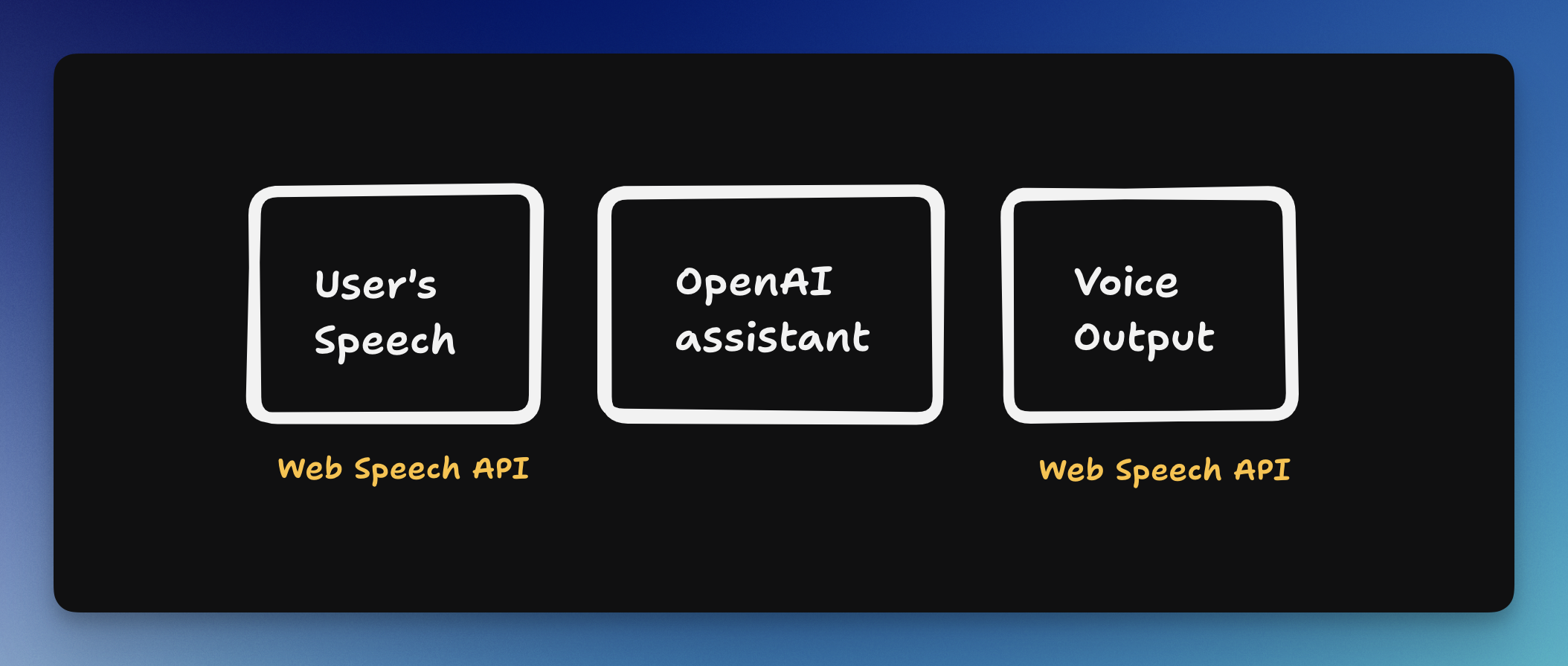

Here is what it looks like on our app:

AI Voice assistant basic logic illustration.

You can replace each of these elements with the more advanced option. I'm trying to stick with what we already have in the browser. These are the alternatives:

Voice input: AssemblyAI or OpenAI Whisper
Voice output: Elevenlabs or OpenAI Whisper

Code Tutorial on how to build a Voice AI assistant

We'll split our codebase into two parts, one for the front end and one for the back end.

First, we just want to make sure that we can get a text from the user's voice and read a text out loud; there is no AI or conversation involved yet.

Here is the final code result of this post

Prefer to watch a video? Here's the video tutorial on Youtube

Step 1: Basic frontend Views

Since we're building a web application, we'll use HTML.
- We need two buttons to start and stop the recording
- A div to display the text

<button id="record">Record</button>
<button id="stop">Stop</button>

<div id="output">Output</div>

(Optional) If you want to copy the style I implemented:

<style>
body {
    margin: 50px auto;
    width: 500px;
}

#output {
    margin-top: 20px;
    border: 1px solid #000;
    padding: 10px;
    height: 200px;
    overflow-y: scroll;
}

#output p:nth-child(even) {
    background-color: #f8f6b1;
}
</style>

Step 2: Listen to speech

Let's trigger the actions from Javascript:

<script>
    // Set up
    const SpeechRecognition = window.SpeechRecognition || window.webkitSpeechRecognition;
    const SpeechGrammarList = window.SpeechGrammarList || window.webkitSpeechGrammarList;
    const SpeechRecognitionEvent = window.SpeechRecognitionEvent || window.webkitSpeechRecognitionEvent;

    const recognition = new SpeechRecognition();
    const speechRecognitionList = new SpeechGrammarList();

    recognition.grammars = speechRecognitionList;
    recognition.continuous = true;
    recognition.lang = 'en-US';
    recognition.interimResults = false;
    recognition.maxAlternatives = 1;


    // Start recording
    document.getElementById('record').onclick = function() {
        recognition.start();
    }

    // Stop recording
    document.getElementById('stop').onclick = function() {
        recognition.stop();
        console.log('Stopped recording.');
    }

    // Output
    recognition.onresult = async function(event) {
        // Get the latest transcript
        const lastItem = event.results[event.results.length - 1]
        const transcript = lastItem[0].transcript;
        document.getElementById('output').textContent = transcript;
        recognition.stop();
        // await sendMessage(transcript); // we'll implement this later
    }

    recognition.onspeechend = function() {
        recognition.stop();
    }
</script>

Step 3: Backend structure

We're using NodeJS/Express for the backend. Make sure to install the necessary packages in your new directory (separate from the frontend code):

npm init -y #initialize NPM package
npm i express cors dotenv openai --save
touch index.js #create a new empty file

const express = require('express');
const cors = require('cors')

// Setup Express and allow CORS
const app = express();
app.use(express.json());
app.use(cors()) // allow CORS for all origins

// Main route
app.post('/message', async (req, res) => {
    const { message } = req.body;
    res.json({ message: 'Received: ' + message });
});

// Start the server
const PORT = process.env.PORT || 3000;
app.listen(PORT, () => {
  console.log(`Server is running on port ${PORT}`);
});

Run node js in your terminal to run the server. Your application is running on localhost:3000.

We only have one route, which is /message , which receives a message from the client and echoes it back. This is to ensure that the input and output parts are running smoothly.

Step 4: Send a message from frontend

Let's add a fetch method to send the message to that endpoint.

Update your recognition.onresult event to call the sendMessage function like this:

recognition.onresult = async function(event) {
    // Get the latest transcript
    const lastItem = event.results[event.results.length - 1]
    const transcript = lastItem[0].transcript;
    document.getElementById('output').textContent = transcript;

    await sendMessage(transcript); // New addition
}

Now, let's declare the sendMessage method:

async function sendMessage(message) {
    const response = await fetch('http://localhost:3000/message', {
        method: 'POST',
        headers: {
            'Content-Type': 'application/json'
        },
        body: JSON.stringify({ message })
    });

    const data = await response.json();
    console.log(data);

    speak(data.message);
}

// SpeechSynthesis
let synthesis = null
if ('speechSynthesis' in window) {
  synthesis = window.speechSynthesis;
} else {
  console.log('Text-to-speech not supported.');
}

function speak(message) {
    if (synthesis) {
        const utterance = new SpeechSynthesisUtterance(message);
        synthesis.speak(utterance);
    }
}

I also added a new method called speak to use the Web Speech API, specifically SpeechSynthesis method to speak. The SendMessage will hit the endpoint we prepared previously.

Step 5: Try the App

Now, run your HTML file, you can use something like VS Code Live server.

press record
say anything

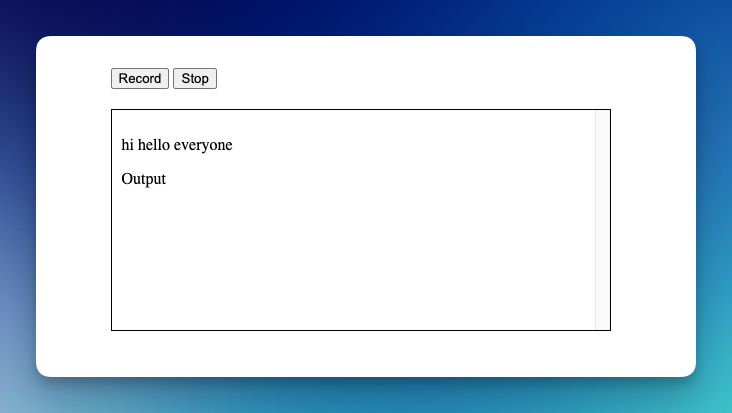

AI Voice assistant web application screenshot

Now, you should see your message echo back to you (it's coming from the server). Press the record button again to send a different message.

Now, we have an app that can listen and speak to us. Let's dive into the AI part!

Smart AI assistant

We'll use the OpenAI Assistants API as the brain.

Step 1: Install the OpenAI package
We've previously installed the OpenAI package for NodeJS. Make sure you've installed it as well.

Step 2: Grab your API Key
Get your API Key from the OpenAI dashboard. Create a new .env file and paste it there.

OPENAI_API_KEY=YOUR_API_KEY_FROM_OPENAI

Step 3: Import OpenAI and dotenv

require("dotenv").config();
const OpenAI = require('openai');
const { OPENAI_API_KEY } = process.env;

// Set up OpenAI Client
const openai = new OpenAI({
    apiKey: OPENAI_API_KEY,
});

Step 4: Implement assistants API
If you're not familiar with the assistants API, I suggest to read this introduction blog post first:

We'll use the same logic and code for this tutorial (with some updates soon). You can also get the code sample for the API assistants here:

Note: I won't explain and show the whole code here.

Step 5: Add the assistants API

We need to tell the AI assistants that they will act as general helpers who can help us with anything.

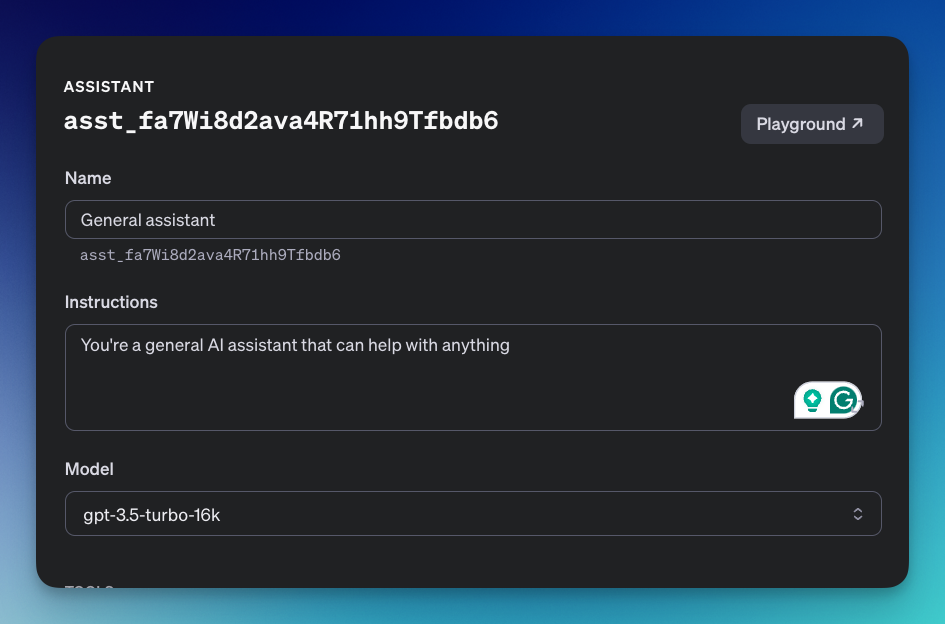

Create the AI assistant via OpenAI dashboard

*Make sure to update the assistant_id key on your code.

Step 6: Assign a thread ID
Since the API needs a thread unique ID for each conversation, I'll add a new fetch request on our frontend to automatically ask for a thread id on the first visit. The ID will also updated on browser refresh.

Reminder: we have this route to create a thread ID from the OpenAI assistant tutorial

// Open a new thread
app.get('/thread', (req, res) => {
    createThread().then(thread => {
        res.json({ threadId: thread.id });
    });
})

Let's add this block to our HTML file (frontend part)

let threadId = null;

// onload
window.onload = function() {
    fetch('http://localhost:3000/thread')
        .then(response => response.json())
        .then(data => {
            console.log(data);
            threadId = data.threadId;
        });
}

We'll adjust our sendMessage method to attach the threadId when sending a message.

 async function sendMessage(message) {
    const response = await fetch('http://localhost:3000/message', {
        method: 'POST',
        headers: {
            'Content-Type': 'application/json'
        },
        body: JSON.stringify({ message, threadId }) // <- update here
    });

    // continue

Step 7: Return the last message only

Let's update our checkingStatus method to only return the latest message from the AI

async function checkingStatus(res, threadId, runId) {
    const runObject = await openai.beta.threads.runs.retrieve(
        threadId,
        runId
    );

    const status = runObject.status;
    console.log(runObject)
    console.log('Current status: ' + status);

    if(status == 'completed') {
        clearInterval(pollingInterval);

        const messagesList = await openai.beta.threads.messages.list(threadId);
        const lastMessage = messagesList.body.data[0].content[0].text.value

        res.json({ message: lastMessage });
    }
}

Our voice assistant is ready!

Step 8: Show all messages

If you want to add all previous transcriptions to the user interface, here is the code to collect all the previous messages in the div.

First, every time we speak:

recognition.onresult = async function(event) {
    // Get the latest transcript
    const lastItem = event.results[event.results.length - 1]
    const transcript = lastItem[0].transcript;

    // Update: Append new text to div
    const newText = "<p>" + transcript + "</p>";
    document.getElementById('output').insertAdjacentHTML("afterbegin", newText);

    recognition.stop();
    await sendMessage(transcript);
}

Second, every time we got a response from the AI:

async function sendMessage(message) {
    console.log('Sending message: ', threadId);
    const response = await fetch('http://localhost:3000/message', {
        method: 'POST',
        headers: {
            'Content-Type': 'application/json'
        },
        body: JSON.stringify({ message, threadId })
    });

    const data = await response.json();

    // update: add new text here
    const newText = "<p>" + data.message + "</p>";
    document.getElementById('output').insertAdjacentHTML("afterbegin", newText);

    speak(data.message);
}

Make sure to re-run your NodeJS app. Now try to have a chat with your AI!

Things we can improve

There are several things we can improve for this voice assistant

AI Instruction
Since we're building a voice assistant, it shouldn't explain things too long for a simple question. We can adjust the instructions like this:

You're a general AI assistant that can help with anything. You're a voice assistant, so don't speak too much, make it clear and concise.

Voice and listening
We use native browser API to listen and speak. Better alternatives exist, such as Elevenlabs, AssemblyAI, and more.

Knowledge Limitation
We're using one of the OpenAI models, where the knowledge is cut off at a particular year. We can expand its knowledge by providing PDF files or connecting the assistant API to the internet.

[Update]

A new blog post on how to connect real-time data to your voice assistant.

Speed
Using the OpenAI API assistants, it took some time to return the response from the AI model. One way we can improve this is by using Groq, which is a company that provide a service to run super fast AI engine. (Not all AI models available).

Here is how I build a very fast AI assistant using Groq. Feel free to read.
