Intro
This is a part of the series of blog posts related to Artificial Intelligence Implementation. If you are interested in the background of the story or how it goes:

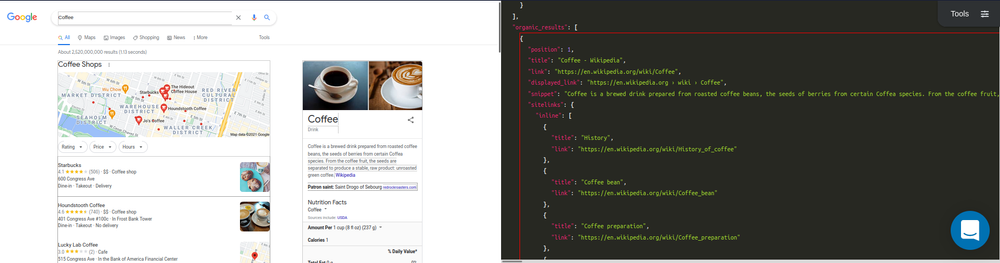

This week we'll showcase storing and reusing trained weights, and talk about the crucial mistake I did in calculating the early results of the model. We will be using SerpApi's Google Organic Results Scraper API for the data collection. Also, you can check in the playground in more detailed view on the data we will use.
Crucial Mistake I made in Calculating Model Accuracy
Let me first give the way in which I calculated using training examples:
true_examples = key_array.map {|el| el = el.first == "1" ? el.second : nil}.compact
false_examples = key_array.map {|el| el = el.first == "0" ? el.second : nil}.compact
predictions = []
false_examples.each do |example|
prediction = test example, 2, vector_array, key_array
predictions << prediction
end
predictions.map! {|el| el = el == 1 ? 0 : 1}
true_examples.each_with_index do |example, index|
puts "--------------"
prediction = test example, 2, vector_array, key_array
predictions << prediction
puts "Progress #{(index.to_f/true_examples.size.to_f).to_f}"
puts "--------------"
end
prediction_train_accuracy = predictions.sum.to_f / predictions.size.to_f
puts "Prediction Accuracy for Training Set is: #{prediction_train_accuracy}"
We take the examples that are snippet
, and ones that are not snippet
, and run them in the trained model. If the prediction of not snippet
examples turned out to be 0
, they would be counted as correct predictions, and if the snippet
results were counted as 1
they would also be counted as correct results. In the end, the result of the rate of correct prediction was 0.8187793427230047
. I later used a larger dataset and the result was around 89%
.
Here's the logical fallacy I have fallen for; There were exhaustively more non-snippet
results as opposed to snippet
results. Let's suppose the rate of which be 1:9 in a 10 unit example set. If the model is prone to call things non-snippet
more than snippet
in a random manner, as it was the case, then non-snippet
results will be predicted correctly, which will create a bias in results.
The reason why it increased to 89 percent in the larger dataset, was because there were more type of keys in it. It resulted in snippet
size / non-snippet
size to minimize further, which triggered a bias in false positive predictions of non-snippet
results.
In reality, I should've tested the model using only snippet
examples. I did, and found out that the model is useless. I will try to tweak and find a way to make it useful. But, I think it is better to show why I made a failed calculation before that to inform everybody, and prevent other people from making the same mistake.
Storing Trained Weights in a Custom Way
It took me a while before I realized my mistake. Before that, I have created a way to store and predict using the model.
Here's the full code for it:
class Predict
def initialize csv_path, trained_weights_path, vocab_path, object = "Snippet", k = 2
@@csv_path = csv_path
@@trained_weights_path = trained_weights_path
@@vocab_path = vocab_path
@@object = object
@@k = k
@@key_arr = []
@@vector_arr = []
@@weights = []
@@maximum_word_size = 0
@@vocab = {}
end
def self.construct
@@weights = initialize_trained_weights @@trained_weights_path
@@vocab = read_vocab @@vocab_path
@@key_arr = read_csv @@csv_path
@@vector_arr = define_training_set @@key_arr
@@maximum_word_size = @@weights.size
extend_vectors
end
def self.read_csv csv_path
CSV.read(csv_path)
end
def self.read_vocab vocab_path
vocab = File.read vocab_path
JSON.parse(vocab)
end
def self.initialize_trained_weights trained_weights_path
weights = File.read trained_weights_path
weights = JSON.parse(weights)
Vector.[](*weights)
end
def self.define_training_set vectors
@@key_arr.map { |word| word_to_tensor word[1] }
end
def self.default_dictionary_hash
{
/\"/ => "",
/\'/ => " \' ",
/\./ => " . ",
/,/ => ", ",
/\!/ => " ! ",
/\?/ => " ? ",
/\;/ => " ",
/\:/ => " ",
/\(/ => " ( ",
/\)/ => " ) ",
/\// => " / ",
/\s+/ => " ",
/<br \/>/ => " , ",
/http/ => "http",
/https/ => " https ",
}
end
def self.tokenizer word, dictionary_hash = default_dictionary_hash
word = word.downcase
dictionary_hash.keys.each do |key|
word.sub!(key, dictionary_hash[key])
end
word.split
end
def self.word_to_tensor word
token_list = tokenizer word
token_list.map {|token| @@vocab[token]}
end
def self.extend_vector vector
vector_arr = vector.to_a
(@@maximum_word_size - vector.size).times { vector_arr << 1 }
Vector.[](*vector_arr)
end
def self.extend_vectors
@@vector_arr.each_with_index do |vector, index|
@@vector_arr[index] = extend_vector vector
end
end
def self.product vector
@@weights.each_with_index do |weight, index|
vector[index] = weight * vector[index]
end
vector
end
def self.euclidean_distance vector_1, vector_2
subtractions = (vector_1 - vector_2).to_a
subtractions.map! {|sub| sub = sub*sub }
Math.sqrt(subtractions.sum)
end
def self.execute example
example_vector = word_to_tensor example
example_vector.map! {|el| el = el.nil? ? 0: el}
example_vector = extend_vector example_vector
weighted_example = product example_vector
distances = []
@@vector_arr.each_with_index do |comparison_vector, vector_index|
distances << euclidean_distance(comparison_vector, weighted_example)
end
indexes = []
@@k.times do
index = distances.index(distances.min)
indexes << index
distances[index] = 1000000000
end
predictions = []
indexes.each do |index|
predictions << @@key_arr[index].first.to_i
end
puts "Predictions: #{predictions}"
prediction = (predictions.sum/predictions.size).to_f
if prediction < 0.5
puts "False - Item is not #{@@object}"
return 0
else
puts "True - Item is #{@@object}"
return 1
end
end
end
csv_path = "organic_results/organic_results__snippet.csv"
trained_weights_path = "organic_results/snippet_weights.json"
vocab_path = "organic_results/vocab.json"
Predict.new csv_path, trained_weights_path, vocab_path, object = "Snippet", k = 5
Predict.construct
true_examples = CSV.read(csv_path)
true_examples = true_examples.map {|el| el = el.first == "1" ? el.second : nil}.compact
true_examples.each_with_index do |example, index|
puts "--------"
puts "#{index}"
Predict.execute example
puts "--------"
end
Conclusion
I made an honest attempt into an area that could relieve some pressure on writing of the tests, and I have failed. A subtle mistakes on custom codes may occur and result in overall failure. I am grateful I gave a shot to it, and saw that this approach was not as effective as I thought it was. I will further work on this in the future. However, for next blog post, the topic will most likely be a different one. I would like to apologize to the reader for giving misleading results in the previous blog post, and thank them for their attention.
