Intro

This is a part of the series of blog posts related to Artificial Intelligence Implementation. If you are interested in the background of the story or how it goes:

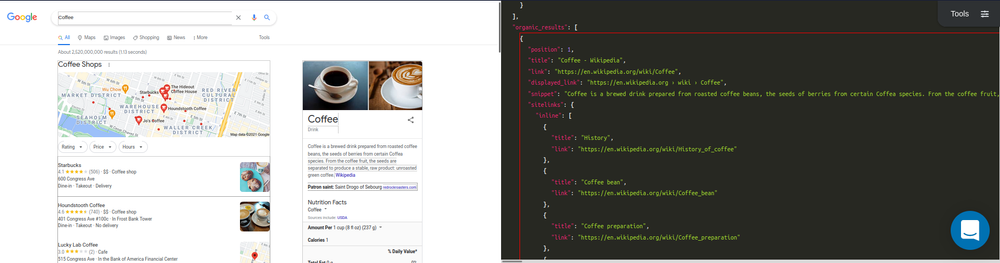

This week we'll showcase storing and reusing trained weights, and the talk about the crucial mistake I did in calculating the early results of the model. We will be using SerpApi's Google Organic Results Scraper API for the data collection. Also, you can check in the playground in more detailed view on the data we will use.


Crucial Mistake I made in Calculating Model Accuracy

Let me first give the way in which I calculated using training examples:

true_examples = key_array.map {|el| el = el.first == "1" ? el.second : nil}.compact
false_examples = key_array.map {|el| el = el.first == "0" ? el.second : nil}.compact

predictions = []

false_examples.each do |example|
  prediction = test example, 2, vector_array, key_array
  predictions << prediction
end

predictions.map! {|el| el = el == 1 ? 0 : 1}

true_examples.each_with_index do |example, index|
  puts "--------------"
  prediction = test example, 2, vector_array, key_array
  predictions << prediction
  puts "Progress #{(index.to_f/true_examples.size.to_f).to_f}"
  puts "--------------"
end

prediction_train_accuracy = predictions.sum.to_f / predictions.size.to_f

puts "Prediction Accuracy for Training Set is: #{prediction_train_accuracy}"

We take the examples that are snippet, and ones that are not snippet, and run them in the trained model. If the prediction of not snippet examples turned out to be 0, they would be counted as correct predictions, and if the snippet results were counted as 1 they would also be counted as correct results. In the end, the result of the rate of correct prediction was 0.8187793427230047. I later used a larger dataset and the result was around 89%.

Here's the logical fallacy I have fallen; There were exhaustively more non-snippet results as opposed to snippet results. Let's suppose the rate of which be 1:9 in a 10 unit example set. If the model is prone to call things non-snippet more than snippet in a random manner, as it was the case, then non-snippet results will be predicted correctly, which will create a bias in results.

The reason why it increased to 89 percent in the larger dataset, was because there were more type of keys in it. It resulted in snippet size / non-snippet size to minimize further, which triggered a bias in false positive predictions of non-snippet results.

In reality, I should've tested the model using only snippet examples. I did, and found out that the model is useless. I will try to tweak and find a way to make it useful. But, I think it is better to show why I made a failed calculation before that to inform everybody, and prevent other people from making the same mistake.

Storing Trained Weights in a Custom Way

It took me a while before I realized my mistake. Before that, I have created a way to store and predict using the model.

Here's the full code for it:

class Predict
  def initialize csv_path, trained_weights_path, vocab_path, object = "Snippet", k = 2
    @@csv_path = csv_path
    @@trained_weights_path = trained_weights_path
    @@vocab_path = vocab_path
    @@object = object
    @@k = k
    @@key_arr = []
    @@vector_arr = []
    @@weights = []
    @@maximum_word_size = 0
    @@vocab = {}
  end

  def self.construct
    @@weights = initialize_trained_weights @@trained_weights_path
    @@vocab = read_vocab @@vocab_path
    @@key_arr = read_csv @@csv_path
    @@vector_arr = define_training_set @@key_arr
    @@maximum_word_size = @@weights.size
    extend_vectors
  end

  def self.read_csv csv_path
    CSV.read(csv_path)
  end

  def self.read_vocab vocab_path
    vocab = File.read vocab_path
    JSON.parse(vocab)
  end

  def self.initialize_trained_weights trained_weights_path
    weights = File.read trained_weights_path
    weights = JSON.parse(weights)
    Vector.[](*weights)
  end

  def self.define_training_set vectors
    @@key_arr.map { |word| word_to_tensor word[1] }
  end

  def self.default_dictionary_hash
    {
      /\"/ => "",
      /\'/ => " \'  ",
      /\./ => " . ",
      /,/ => ", ",
      /\!/ => " ! ",
      /\?/ => " ? ",
      /\;/ => " ",
      /\:/ => " ",
      /\(/ => " ( ",
      /\)/ => " ) ",
      /\// => " / ",
      /\s+/ => " ",
      /<br \/>/ => " , ",
      /http/ => "http",
      /https/ => " https ",
    }
  end

  def self.tokenizer word, dictionary_hash = default_dictionary_hash
    word = word.downcase
    dictionary_hash.keys.each do |key|
      word.sub!(key, dictionary_hash[key])
    end
    word.split
  end

  def self.word_to_tensor word
    token_list = tokenizer word
    token_list.map {|token| @@vocab[token]}
  end

  def self.extend_vector vector
    vector_arr = vector.to_a
    (@@maximum_word_size - vector.size).times { vector_arr << 1 }
    Vector.[](*vector_arr)
  end

  def self.extend_vectors
    @@vector_arr.each_with_index do |vector, index|
      @@vector_arr[index] = extend_vector vector
    end
  end

  def self.product vector
    @@weights.each_with_index do |weight, index|
      vector[index] = weight * vector[index]
    end

    vector
  end

  def self.euclidean_distance vector_1, vector_2
    subtractions = (vector_1 - vector_2).to_a
    subtractions.map! {|sub| sub = sub*sub }
    Math.sqrt(subtractions.sum)
  end

  def self.execute example
    example_vector = word_to_tensor example
    example_vector.map! {|el| el = el.nil? ? 0: el}
    example_vector = extend_vector example_vector
    weighted_example = product example_vector

    distances = []
    @@vector_arr.each_with_index do |comparison_vector, vector_index|
      distances << euclidean_distance(comparison_vector, weighted_example)
    end

    indexes = []
    @@k.times do
      index = distances.index(distances.min)
      indexes << index
      distances[index] = 1000000000
    end

    predictions = []
    indexes.each do |index|
      predictions << @@key_arr[index].first.to_i
    end

    puts "Predictions: #{predictions}"

    prediction = (predictions.sum/predictions.size).to_f
    if prediction < 0.5
      puts "False - Item is not #{@@object}"
      return 0
    else
      puts "True - Item is #{@@object}"
      return 1
    end
  end
end

csv_path = "organic_results/organic_results__snippet.csv"
trained_weights_path = "organic_results/snippet_weights.json"
vocab_path = "organic_results/vocab.json"

Predict.new csv_path, trained_weights_path, vocab_path, object = "Snippet", k = 5
Predict.construct

true_examples = CSV.read(csv_path)
true_examples = true_examples.map {|el| el = el.first == "1" ? el.second : nil}.compact

true_examples.each_with_index do |example, index|
  puts "--------"
  puts "#{index}"
  Predict.execute example
  puts "--------"
end

Conclusion

I made an honest attempt into an area that could relieve some pressure on writing of the tests, and I have failed. A subtle mistakes on custom codes may occur and result in overall failure. I am grateful I gave a shot to it, and saw that this approach was not as effective as I thought it was. I will further work on this in the future. However, for next blog post, the topic will most likely be a different one. I would like to apologize to the reader for giving misleading results in the previous blog post, and thank them for their attention.
